Description

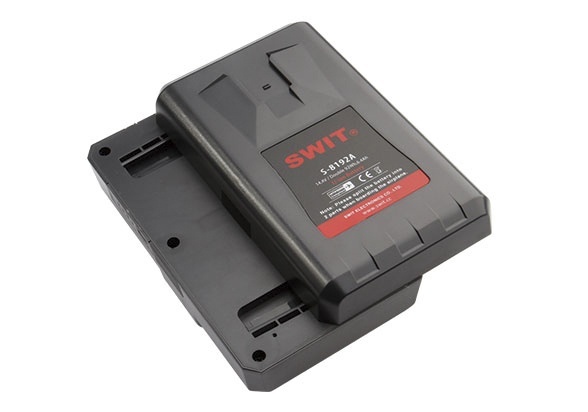

The SWIT S-8192A is a dividable 14.4V Gold-mount battery that delivers high-capacity 184Wh power for demanding shoots while staying airline-friendly, splitting into two independent 92Wh packs. Ideal for ENG cameras and accessories, it supports up to 100W/8A output, includes a D-Tap port, and features a four-level LED indicator for instant power checks.
Key features
-14.4V Li-ion Gold-mount battery pack
-Patented dividable design: two 92Wh sections (92Wh + 92Wh / 6.4Ah + 6.4Ah) that assemble to 184Wh total capacity
-Each 92Wh half complies with IATA 100Wh air transport limit (no restrictions when carried properly)
-Maximum output: 100W, 8A, powering ENG/digital cine cameras and on-board gear
-Built-in D-Tap output (nominal 14.4V) for lights, monitors, wireless transmitters (max 100W/8A shared)
-Four-level LED power indicator on the side for quick remaining-capacity reads
-Anton/Bauer Gold-mount compatible with durable metal contacts for secure mounting
-Advanced protections against over-voltage, under-voltage, over-current, short-circuit, and temperature extremes
Technical specifications
Chemistry: Li-ion
Nominal voltage: 14.4V
Capacity (assembled): 184Wh / 12.8Ah
Capacity (per section): 92Wh / 6.4Ah + 92Wh / 6.4Ah
Max output power: 100W
Max output current: 8A
Mount type: Gold-mount (Anton/Bauer compatible)
Output connector: 1x D-Tap (14.4V nominal, max 100W/8A shared with main output)
Operating temperature: 0°C to 40°C
Approx. dimensions: 168 × 101 × 65 mm (6.61 × 3.98 × 2.56″)
Approx. weight: 1.25 kg (2.76 lb)
Fully assembled at 184Wh, the S-8192A runs a typical 30W ENG camera for about 6 hours, based on standard loads. It’s perfect for broadcast, documentary, and travel-heavy productions needing robust runtime without air-travel hassles.
